Function:
The utility model is characterized in that it is composed of a chuck body, a blade and a fixing screw, and the blade is installed outside the chuck body through the fixing screw.

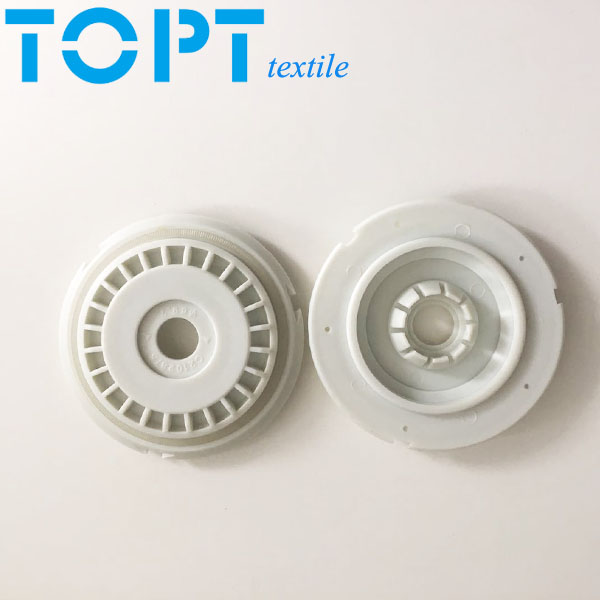

The chuck body is characterized in that it is made of nylon, with a circular shape and a radius of 46.5mm; The blade is characterized in that it comprises a blade body, a blade and a screw hole, one end of the blade body is provided with a blade, the included angle formed by the blade is 22 degrees, the blade body is provided with two screw holes, the diameter of the screw holes is 2mm, the vertical distance between the centers of the two screw holes is 7mm, the vertical distance between the center of the first screw hole and the top of the blade is 7mm, the vertical distance of the blade is 18mm, the width of the blade is 4.5mm and the thickness is 0.2mm.

It can prolong the service life of the cartridge chuck, reduce the maintenance cost and improve the labor efficiency.

Specification:

Products Image:

Other  BARMAG Texturizing machinery parts:

Packing and Delivery:

1.Carton package suitable for air and sea shipment.

2.Delivery normally is one week.
