China China made quality weft feeder for Weaving rapier loom spare parts factory and manufacturers

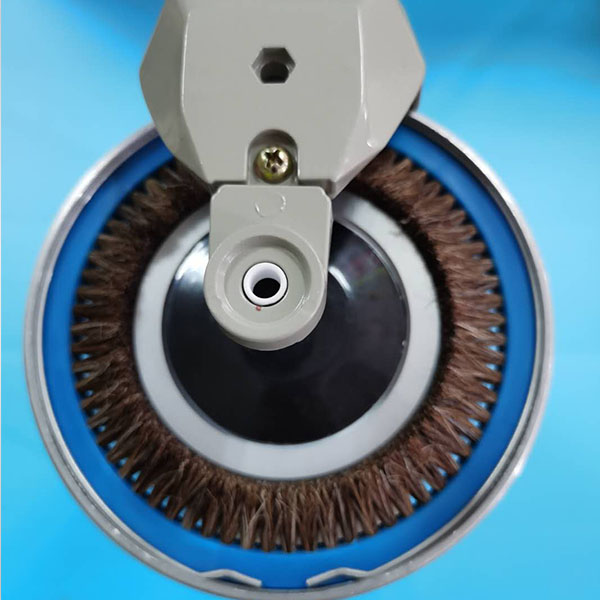

China made quality weft feeder for Weaving rapier loom spare parts Featured Image

Short Description:

Overview Quick Details Use: Weaving Machinery Type: weft feeder Warranty: Unavailable Condition: New Applicable Industries: Textile Machine Parts Video outgoing-inspection: Not Available Machinery Test Report: Not Available Marketing Type: Ordinary Product Place of Origin: Zhejiang, China Brand Name: topt Material: plastic and metal package: single piece package Quality: guaranteed Application: rapier loom Name: weft feeder MOQ...

Send email to us

Product Detail

Product Tags

Overview

Quick Details

Use:: Weaving Machinery

Type:: weft feeder

Warranty:: Unavailable

Condition:: New

Applicable Industries:: Textile Machine Parts

Video outgoing-inspection:: Not Available

Machinery Test Report:: Not Available

Marketing Type:: Ordinary Product

Place of Origin:: Zhejiang, China

Brand Name:: topt

Material:: plastic and metal

package:: single piece package

Quality:: guaranteed

Application:: rapier loom

Name:: weft feeder

MOQ:: 2pcs

Brand:: topt

Size:: Standard Size

Payment Term:: TT,PAYPAL,WU

Delivery time:: 5-7working Days

After Warranty Service:: Online support

Local Service Location:: None

Showroom Location:: None

Function of weft accumulator:
The temporarily stored weft yarns are arranged and wound neatly on the surface of the smooth cylinder or cone with small cone angle of the yarn storage drum, which creates good conditions for high-speed unwinding of weft yarn for weft insertion and makes the unwinded weft yarn obtain more uniform tension.

The way that the motor drives the yarn storage drum to rotate for yarn winding is called dynamic drum type. The yarn storage drum with large moment of inertia is used as the yarn winding rotating part with frequent starting and braking, which is unfavorable to high speed.

On the contrary, the motor drives the light-weight winding disc to rotate. The way of winding yarn on the surface of the fixed yarn storage drum is called fixed drum type, which is conducive to high speed and is the development direction of the weft storage device. Adjusting the position of photoelectric yarn storage detector can maintain the yarn storage on the yarn storage drum in a reasonable range, and the yarn arrangement mechanism can make the yarn on the yarn storage drum arranged evenly and orderly.

During weft insertion, the rapier or shuttle overcomes the resistance generated by the damping ring to pull the weft from the yarn storage drum, and the weft tension is controlled by the tensioner. The winding speed of the weft accumulator can be adjusted manually or tracked automatically by the control circuit, so that the winding parts can rotate continuously at a low speed and the bobbin unwinding can be carried out continuously.

Specification:

Remark:		Application:	weaving machinery
Name:	weft feeder	Color:

Our Good Before & After sale Service: 1.Good Quality :we cooperated with many stable factories, which can guarantee the good quality…
2.Competitive price: factory direct supplier with best price.
3.Quality guarantee, 100% pre-test for each item. we can return the value of the problem goods, if it is our quality factor.
4.Within 3–5 days can send out to customer checking
5. 24 hours online and cellphone service making sure prompt response

Our Good Before & After sale Service:

1.Good Quality :we cooperated with many stable factories, which can guarantee the

good quality…

2.Competitive price: factory direct supplier with best price.

3.Quality guarantee, 100% pre-test for each item. we can return the value of the problem goods, if it is our quality factor.

4.Within 3–5 days can send out to customer checking

5. 24 hours online and cellphone service making sure prompt response
